This is a Millitech Wireless Link Loop ( WLL ) P/N = XCV31-UB1H-R2
The cover was lifted only for the purpose of photograph
Runs off of -48 volts fed into the output IF connector

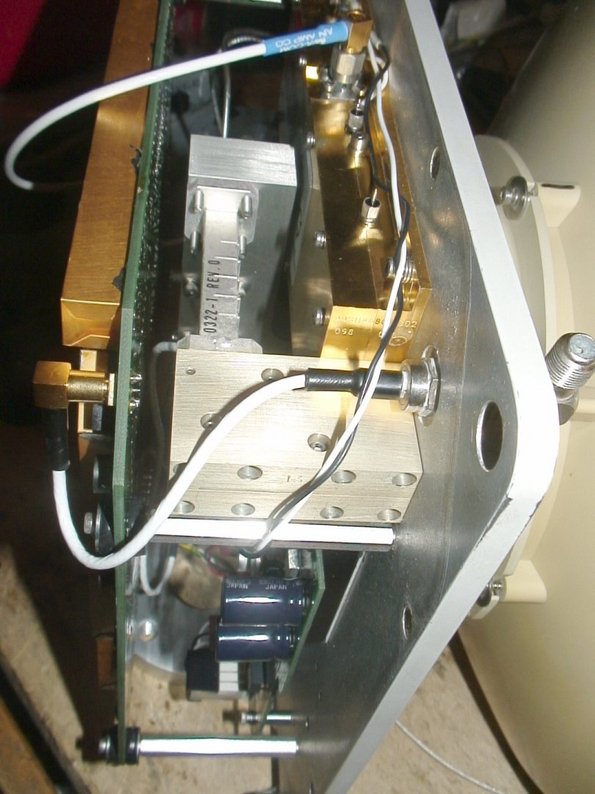

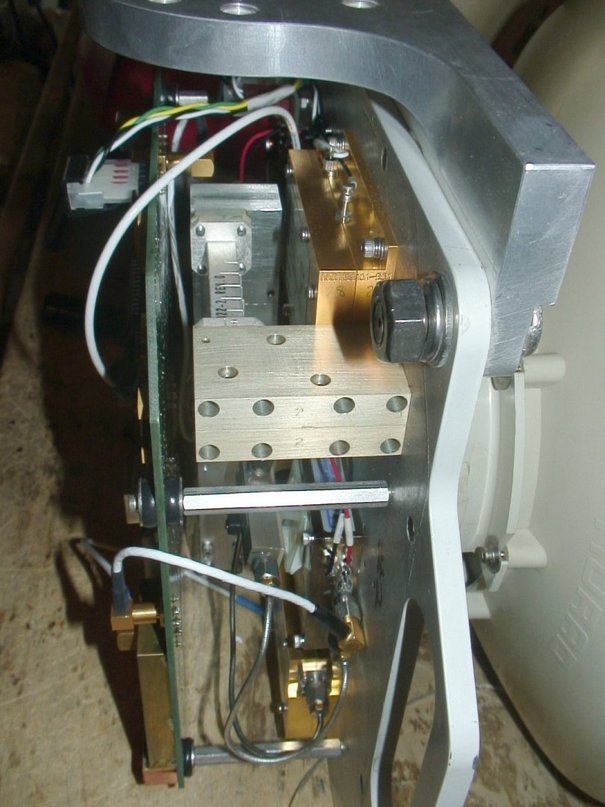

A partial list of contents of this box:
1- parabolic antenna / feedhorn

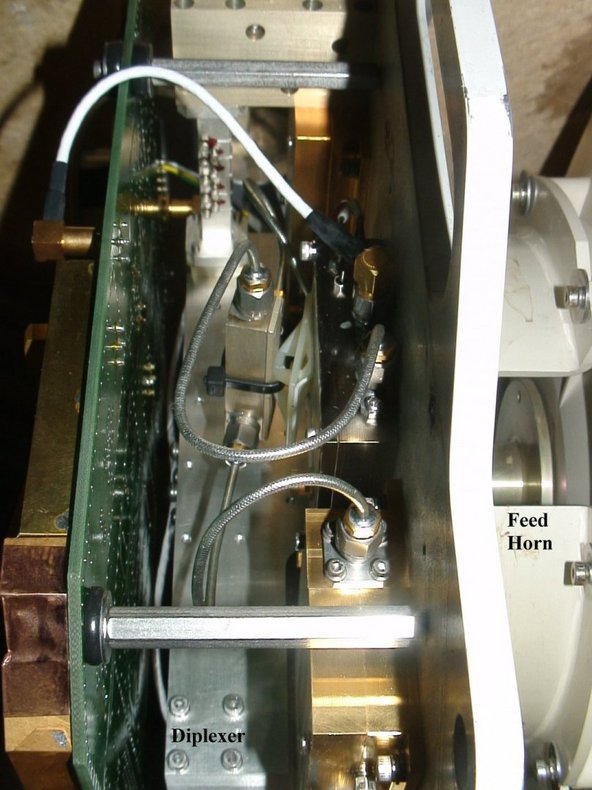

2- diplexer - transmit and receive is set up to occur similtaneously
3- transmit amplifier / upconverter - from appearances it probably goes about 1 Watt transmit power but this is only a guess
4- receive amplifier / converter
5- IF board
This is an excellent piece of equipment for alot of different applications. Possible to use for a really good moving target doppler radar where you can hear the audio such as the one you can listen to here: http://www.emarket-usa.com/anuncio-43838991.html
At 20GHz you would get twice the frequency due to the same velocity of motion thus making this unit superior in detection |
