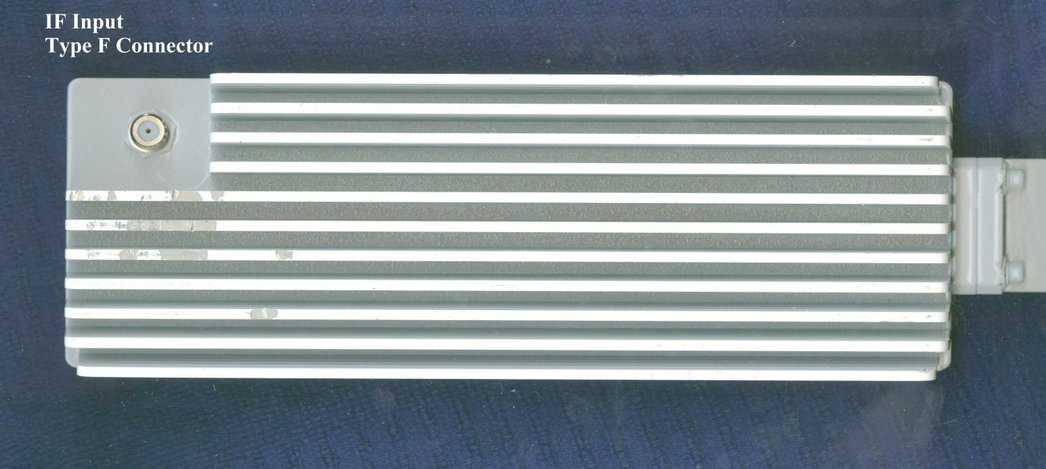

USMonolithics Block UpConverter based on a DRO block upconversion mix.   This device takes in 950 to 1450 ( range of 500 MHz ) and puts it out in the 14.0 - 14.5 GHz range as far as I can tell.

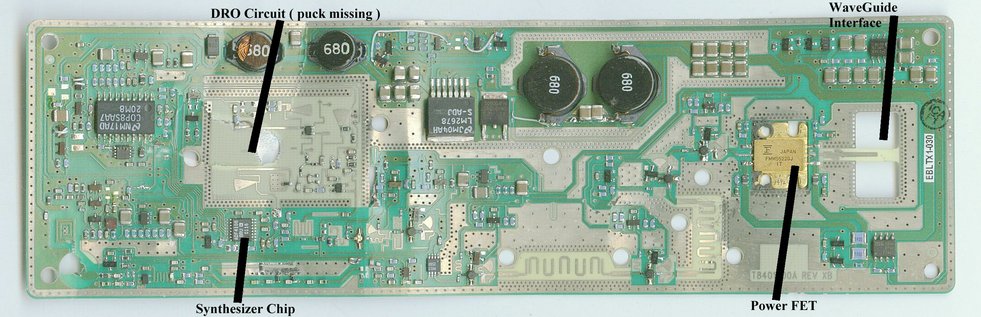

The above board scan is from a board pulled from a defunct unit.  It is NOT from the unit for sale. The units I am selling are fully mechanically intact and have not had their lids lifted.

The above scan of the mainboard is high enough resolution to read most if not all components. If the popup photo is not large enough cut and paste to your favorite photo editing program and zoom in.

Analog Devices ADF4106 Synthesizer chip data sheet at:  http://www.analog.com/en/prod/0,,770_850_ADF4106,00.html

The Fujitsu FMM5522GJ  3 Watt output power device data sheet is included above: see the pdf datasheet
